DAZZii BAR 510 Cartridge Concealable VV 450mAh PreHeat OLED Screen Battery

DAZZLEAF DAZZii BAR 510 Cartridge Concealable VV 450mAh PreHeat OLED Screen Battery

With its sleek and stylish bar-style body, DAZZii BAR is designed to be as stealthy as possible, allowing you to enjoy your favorite oils without any unwanted attention.

DAZZii BAR can adjust the voltages by the Auto draw or Bottom Power Button to your preferences with ease. and the OLED Screen can easily tell the voltage/battery/puffs when you using it.

With a powerful 450mAh battery and Type C fast charging port, you can enjoy long vaping sessions without having to worry about running out of power.

Also incredibly versatile DAZZii BAR can be compatible with most 510 cartridges up to 2mL.

Watch as the bottom OLED Screen of the vape slides, captivating your eyes with its mesmerizing display. Whether you prefer standard or high-potency oils, just vape and go.

The DAZZii BAR is equipped with four variable voltage settings, preheat mode, OLED Screen, short circuits, and overcharging protection.

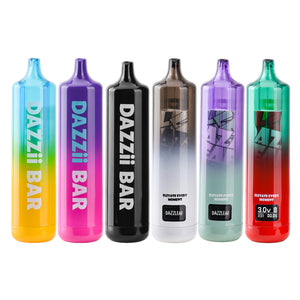

But don't let its discreet design fool you - this DAZZii BAR is packed with a range of 6 colorful that meet your favorite pairing.

Black / Purple / Blue&Yellow / Purple&Green / White&Black / Green&Red

Specifications:

Quick Start Instructions

The DAZZii BAR should be charged for an hour before the first use.

Remove the bottom magnetic end. Insert your 510 threaded cartridges.

Auto Draw Function: 5 x quick puffs to power the vape on, 2 x quick puffs to activate the pre-heat mode, and 3 x quick puffs to change the voltage settings.

Power Button Function:

Quickly press the power button 5 times to power ON/OFF the DAZZii BAR. Quickly press the power button 3 times to change the voltage to your favorite temp setting from 2.4V to 4.2V, 0.2V each. Quickly press the power button 2 times to activate pre-heat mode.

Pre-Heating:

Quickly pull from the mouthpiece twice to activate the preheat function, you can also press the bottom button 2 times to activate the preheat function.

The Preheating will last 15 seconds with 2.0V pre-heat voltage. In the preheating mode, On-screen countdown from 15s to 1s, press the power button 1 time or pull on the mouthpiece 1 time to stop preheating.

Normal Smoking Use:

Both auto inhale and button power are workable in normal vaping use mode, the guide bar and the sensor will illuminate. The sensor does not light in the preheating mode.

OLED Screen Display:

Power -ON Display: “DAZZLEAF”
Power -OFF Display: “OFF”
“LOW BAT”: The system detects that the power of the DAZZii BAR is too low to work and needs to charge.
“SHORT” : When the output is short-circuited, the MOS is automatically turned off to prevent burning.
“TIMEOUT”: Auto heat shut-off after 20 seconds of use for protection
OFF State: Hold down the Power button for 5 seconds to clear the number of puffs.

Battery and Charging:

Type-C Fast Charging
Attention: The DAZZii BAR battery should be charged for an hour before the first use.

Fully Charged: The battery symbol is displayed in full.
75%-100%: 4 Grids;
50%-75%: 3 Grids;
25%-50%: 2 Grids;
0%-25%: 1 Grids;
Battery dead: 0 Grids;

Battery Life/Cartridge Protection:

After 10 continuous seconds of use, the red light will flash 4 times, and the automatic vape time cut off will activate, turning off the heat (but not the power), press the button, or pull-draw to restart.

Protection Function:

Short circuit protection: The device will stop working immediately when a short circuit is detected and Red light will flash 10 times.

Overcharging protection: When your DAZZii BAR is fully charged, it will stop charging to prevent overcharging.

Overheating protection: The DAZZii BAR will pause for about 3 seconds after continuously being heated for 15 seconds. Meanwhile, the bottom indicator light will flash 5 times.

How To Use

1. Make sure that the bottom magnetic connector is properly connected to the bottom of the unit. The battery will not charge if the bottom connector is not attached.

9. Simply pull from the mouthpiece or push the button to activate the cartridge.

Cleaning Instructions:

Remove the battery cover.

Wipe the outside and inside of the bottom magnetic connector with an alcohol pad. Use an alcohol swab to wipe any excess oil out of the 510 screw-in connector.

Clean the inside air pathway with an alcohol swab.

Do not submerge any part of the device in the cleaning solution. Allow all parts to air dry before resuming use.
